Based on pass type (e.g. event ticket, store card etc.) you'll need to provide different images that are displayed on the Wallet passes. On this page we've put together all info on image sizes and what images are shown for each pass type.

Images you're uploading to Passcreator may be larger than specified on this page you should, however, use the same image ratio for ideal results.

Event ticket with full screen background

This pass type requires the following images:

Background image

The background image is displayed full screen and a gaussian blur effect is applied automatically.
Image size: min. 360x440 Pixel

Portrait image

Is displayed on the right section of the Wallet pass and can be used to e.g. display an image of the card owner.
Image size: Flexible, a image ration of 1:2 (width:height) is suggested.

Logo

The logo is displayed in the upper left section of the pass. It should be up to 320 pixels wide. The height is flexible. If you upload a wider logo it will be displayed correctly but the text fields to the right will be cropped or hidden.
Image size: Width up to 320 pixels, height flexible.

Icon

The icon is displayed in Push Notifications on the lock screen as well as in the notification center.
Image size: minimum 120x120 pixels. Equal ratio (width equals height).

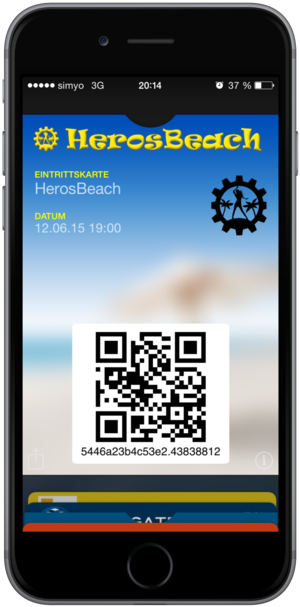

Wallet event ticket

Event ticket with small background image

This pass type requires the following images:

Background image

The background image is displayed in the upper section of the Walelt pass.
Image size: 640x168 pixels

Logo

The logo is displayed in the upper left section of the pass. It should be up to 320 pixels wide. The height is flexible. If you upload a wider logo it will be displayed correctly but the text fields to the right will be cropped or hidden.
Image size: Width up to 320 pixels, height flexible.

Icon

The icon is displayed in Push Notifications on the lock screen as well as in the notification center.
Image size: minimum 120x120 pixels. Equal ratio (width equals height).

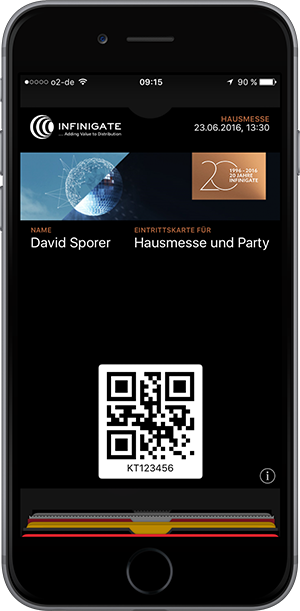

Event ticket with small background image in Wallet App

Store cards

This pass type requires the following images:

Background image

The background image is displayed in the upper area of the Wallet pass.
Image size for square barcodes (QR-Code & Aztec): 640x220 pixels
Image size for other barcodes: 640x246 pixels

Logo

The logo is displayed in the upper left section of the pass. It should be up to 320 pixels wide. The height is flexible. If you upload a wider logo it will be displayed correctly but the text fields to the right will be cropped or hidden.
Image size: Width up to 320 pixels, height flexible.

Icon

The icon is displayed in Push Notifications on the lock screen as well as in the notification center.
Image size: minimum 120x120 pixels. Equal ratio (width equals height).

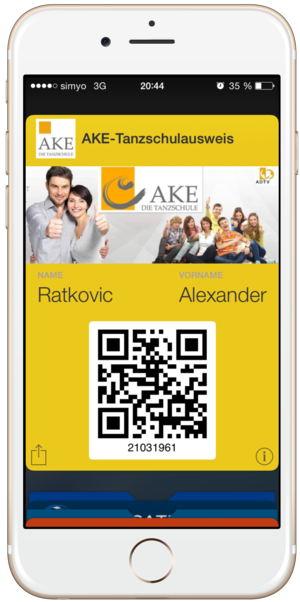

Wallet store card

Coupons

This pass type requires the following images:

Background image

The background image is displayed in the upper area of the Wallet pass.
Image size for square barcodes (QR-Code & Aztec): 640x220 pixels
Image size for other barcodes: 640x246 pixels

Logo

The logo is displayed in the upper left section of the pass. It should be up to 320 pixels wide. The height is flexible. If you upload a wider logo it will be displayed correctly but the text fields to the right will be cropped or hidden.
Image size: Width up to 320 pixels, height flexible.

Icon

The icon is displayed in Push Notifications on the lock screen as well as in the notification center.
Image size: minimum 120x120 pixels. Equal ratio (width equals height).


Coupon in Wallet App

Membership cards

This pass type requires the following images:

Member image

This image is displayed on the right area of the Wallet pass. You should use it to display an image of the card holder.
Image size: Flexible, ideally an image ratio of 1:2 (width:height) should be used.

Logo

The logo is displayed in the upper left section of the pass. It should be up to 320 pixels wide. The height is flexible. If you upload a wider logo it will be displayed correctly but the text fields to the right will be cropped or hidden.
Image size: Width up to 320 pixels, height flexible.

Icon

The icon is displayed in Push Notifications on the lock screen as well as in the notification center.
Image size: minimum 120x120 pixels. Equal ratio (width equals height).

Membership card in Wallet App
